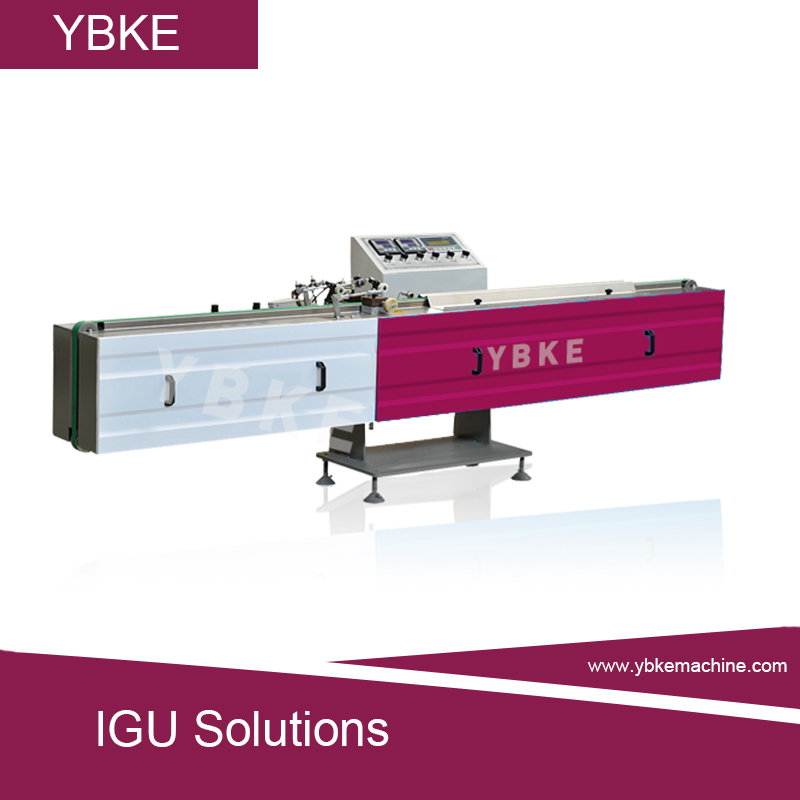

Semi-auto Bbutyl Eextruder Machine

Time：2023-04-0529 Views

semi-auto butyl extruder machine adopts advanced gas-liquid pressure system, which makes the equipment pressure more stable and energy-saving.

semi-auto butyl extruder machine adopts advanced gas-liquid pressure system, which makes the equipment pressure more stable and energy-saving.
PLC control system, man-machine interface.Rubber nozzle spacing in the working state has the function of manual adjustment.
semi-auto butyl extruder machine has preheating function.Glue-free automatic alarm system.

Automatic Butyl Extruder Machine.jpg

Product Parameters

Item	Data
Power Supply	220V 50HZ 1P
Power	4kw
Air pressure	0.5-0.8MPa
Air consumption	100L/min
Extruding temperature	110-140℃
Extruding pressure	12-14MPa
Conveying speed	28m/min
Working speed	22m/min
Cylinder capacity	7kg
Nozzle distance	6-27mm(manual adjustment)
Overall dimension	30007001230mm

If you are interested in our product, please feel free to call us+86 18005412752
